Plywood labeled as “3/4 inch” rarely measures a full 0.75 inches in thickness. Instead, most standard panels measure approximately 23/32 inch. This difference is not a manufacturing flaw but a result of standardized production methods, material behavior, and performance requirements. Understanding this distinction helps clarify how plywood is engineered for consistency, strength, and long-term reliability.
The 23/32-inch thickness represents the finished, calibrated dimension of plywood after pressing, sanding, and quality control processes.
Why Is Plywood Not Exactly 3/4 Inch Thick?
Plywood begins its production process thicker than its final marketed dimension. During manufacturing, multiple veneer layers are bonded together under pressure and heat, then sanded to achieve a uniform surface.
The reduction from nominal to actual thickness occurs during surface calibration, which ensures consistency, flatness, and compatibility with construction tolerances.
| Stage | Purpose |
|---|---|
| Veneer Assembly | Builds initial panel thickness |
| Hot Pressing | Bonds layers under controlled pressure |
| Surface Sanding | Achieves smooth, uniform final dimension |
This controlled reduction allows panels from different production batches to perform consistently when installed together.
How Industry Standards Define Plywood Thickness
The plywood industry follows standardized thickness classifications to ensure interchangeability across projects and regions. These standards are based on nominal sizing rather than exact finished measurements.
A panel labeled as 3/4 inch is standardized to finish at approximately 23/32 inch to maintain compatibility with framing systems and accessories.
| Nominal Size | Actual Thickness | Common Applications |
|---|---|---|
| 1/2 inch | ~15/32 inch | Wall panels, cabinetry |
| 5/8 inch | ~19/32 inch | Subfloor systems |
| 3/4 inch | ~23/32 inch | Structural sheathing, flooring |
This consistency allows builders and manufacturers to design components that fit together without on-site modification.
How Manufacturing Processes Influence Final Thickness

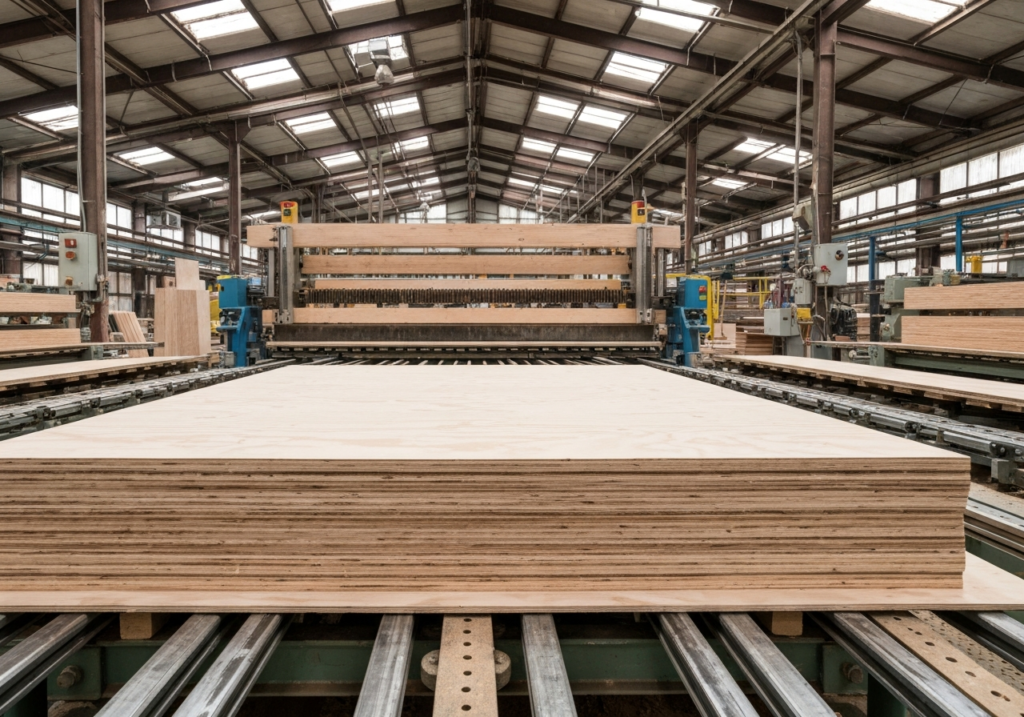

During production, plywood passes through multiple calibrated machines designed to ensure accuracy and stability. Each stage slightly refines the panel surface.
Precision sanding and calibration systems remove minimal material while achieving tight thickness tolerances.
| Production Step | Function |
|---|---|
| Veneer Drying | Stabilizes moisture content |
| Panel Pressing | Bonds layers under controlled pressure |
| Wide-Belt Sanding | Finalizes surface flatness and thickness |
Modern factories use laser thickness scanners and automated feedback loops to maintain consistency across large production volumes.
Why Thicker Plywood Is Not Always Better
Although thicker panels may seem stronger, they are not always the best choice for every application. Structural efficiency depends on load distribution, span, and material performance rather than thickness alone.
Excess thickness increases weight, cost, and installation effort without proportionate performance gains in many applications.
| Thickness Choice | Practical Impact |
|---|---|
| Overbuilt Panels | Increased cost and handling difficulty |
| Optimized Panels | Balanced strength and efficiency |
| Undersized Panels | Reduced load capacity |
Engineered plywood thicknesses are selected to meet design loads while maintaining efficiency and workability.
How Factories Control Thickness Accuracy
Maintaining consistent thickness requires tightly controlled production environments and advanced quality systems.
Factories use automated presses, laser measurement systems, and inline inspection to ensure every sheet meets dimensional standards.
| Control Method | Function |
|---|---|
| Automated Pressing | Ensures uniform panel compression |
| Laser Measurement | Monitors thickness in real time |
| Statistical Quality Control | Detects deviations early |
These processes allow large volumes of plywood to maintain consistent performance across batches and production runs.
Why Understanding Thickness Matters in Real Applications
Choosing the correct plywood thickness affects structural safety, installation accuracy, and long-term performance. Designs based on nominal thickness alone can lead to fitment issues or reduced load capacity.
Understanding the relationship between nominal and actual thickness helps ensure proper material selection and reliable construction outcomes.
| Application Area | Thickness Consideration |
|---|---|
| Structural Framing | Requires verified load-bearing capacity |
| Cabinetry | Depends on precise panel fit |
| Flooring Systems | Must align with subfloor and fasteners |
Manufacturers design panels to meet these functional demands while maintaining consistency across production lots.
Conclusion
Plywood is labeled 3/4 inch for standardization, yet its true thickness of approximately 23/32 inch reflects the realities of modern manufacturing. This difference results from controlled sanding, moisture management, and quality calibration processes essential for reliable performance. Understanding why this distinction exists allows for better material selection, accurate installation, and improved long-term durability. By aligning design expectations with manufacturing standards, plywood can be used efficiently across structural, architectural, and industrial applications.
